POWER TRANSMISSION MHR z 26/40

for YAMAHA T MAX 500 ie 4T LC 2008->2011

6714757

€ 333.00
-10%
€ 299.70



The product is AVAILABLE

Description

Malossi Super T Max quickens its steps.

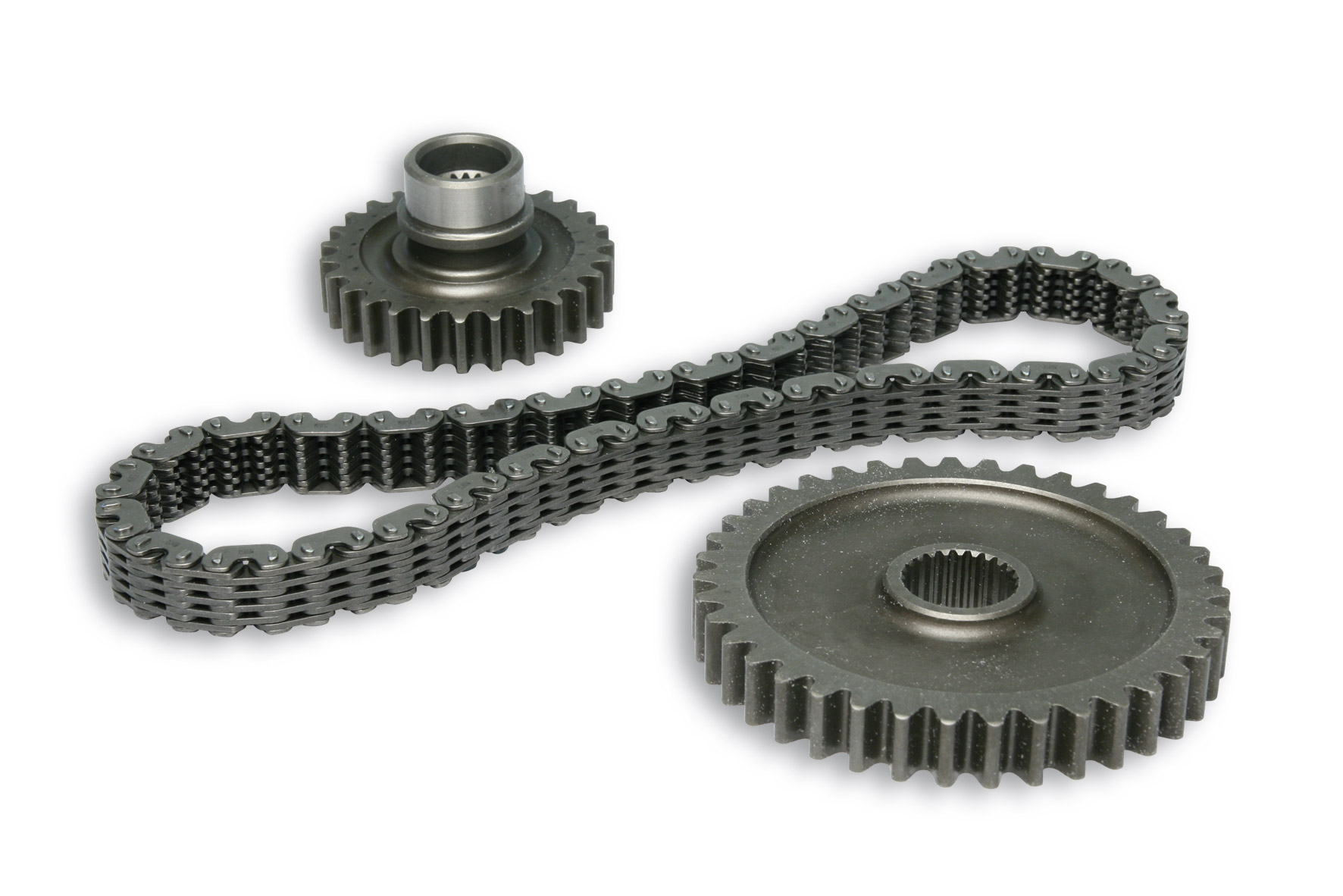

Mhr Power Transmission, art. 6714757, is a Malossi project:

HTQ Z 26/40 pinion and ring gear pair with lengthened gear ratio,

Malossi Morse lightened, narrower, frictionless racing chain.

This system completely replaces the original primary gears (25-tooth pinion and 41-tooth ring gear) with a 26-tooth drive pinion and a 40-tooth driven ring gear, thus providing a 7% longer ratio.

Besides providing this longer ratio, these gears are narrower, as to fit the new Malossi Morse racing chain, which is frictionless and without friction springs, thus lighter, more sliding and with higher resistance and long life compared to the original one, since "you can't break what is missing".

Malossi is glad and proud to offer its customers a further masterpiece of modern technology.



Technical details

HTQ Z 26/40 pinion and ring gear pair

  1. Toothed ring gear pair with narrower walls, consisting of one 26-tooth drive pinion and one 40-tooth driven ring gear, made in Cr Ni Mo 5 alloy steel, tempered and case-hardened, manufactured basing on Malossi design with high precision machine tools.
  2. Tooth profile designed for maximum resistance and minimum noise.
  3. Tooth contact surfaces provided with maximum finish to ensure very long life and operating reliability.
  4. High-standard inspections on each component, from raw materials to the finished product, ready for sale.

Malossi Morse Racing chain

Narrower chain, designed to eliminate the lateral friction of the original chain.



NB: we recommend not to modify Malossi Morse racing chain, art. 6114474B, in order to fit the original or other manufacturers' pinion and ring gear pair. Malossi does not assume any responsibility, thus won't recognize any warranty in case of damage.

Product reserved exclusively for competitive use in areas designated for competitions, according to regulations stipulated by the relevant sporting authority. We do not accept any liability for improper use.

Makes and Models

POWER TRANSMISSION MHR z 26/40

Make Model
YAMAHA YAMAHA T MAX 500 ie 4T LC 2004->2007
YAMAHA YAMAHA T MAX 500 ie 4T LC 2008->2011
YAMAHA YAMAHA T MAX (carb.) 500 4T LC 2001->2003

Spare parts

POWER TRANSMISSION MHR z 26/40

Code Description Price
6114474B Malossi MORSE RACING CHAIN
ATTENTION: we recommend not to modify Malossi Morse racing chain, art. 6114474B, in order to fi t the original or other manufacturers’ pinion and ring gear pair. Malossi does not assume any responsibility, thus won’t recognize any warranty in case of damage.
€ 147.24
